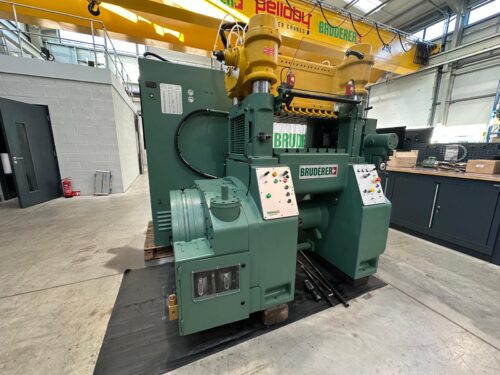

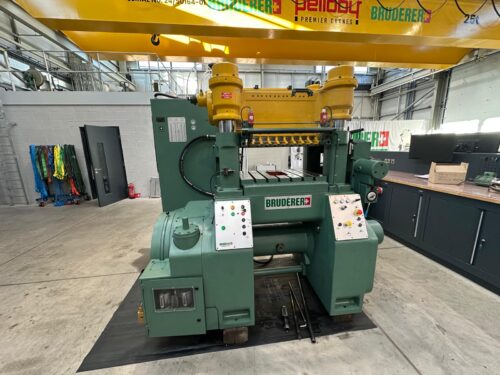

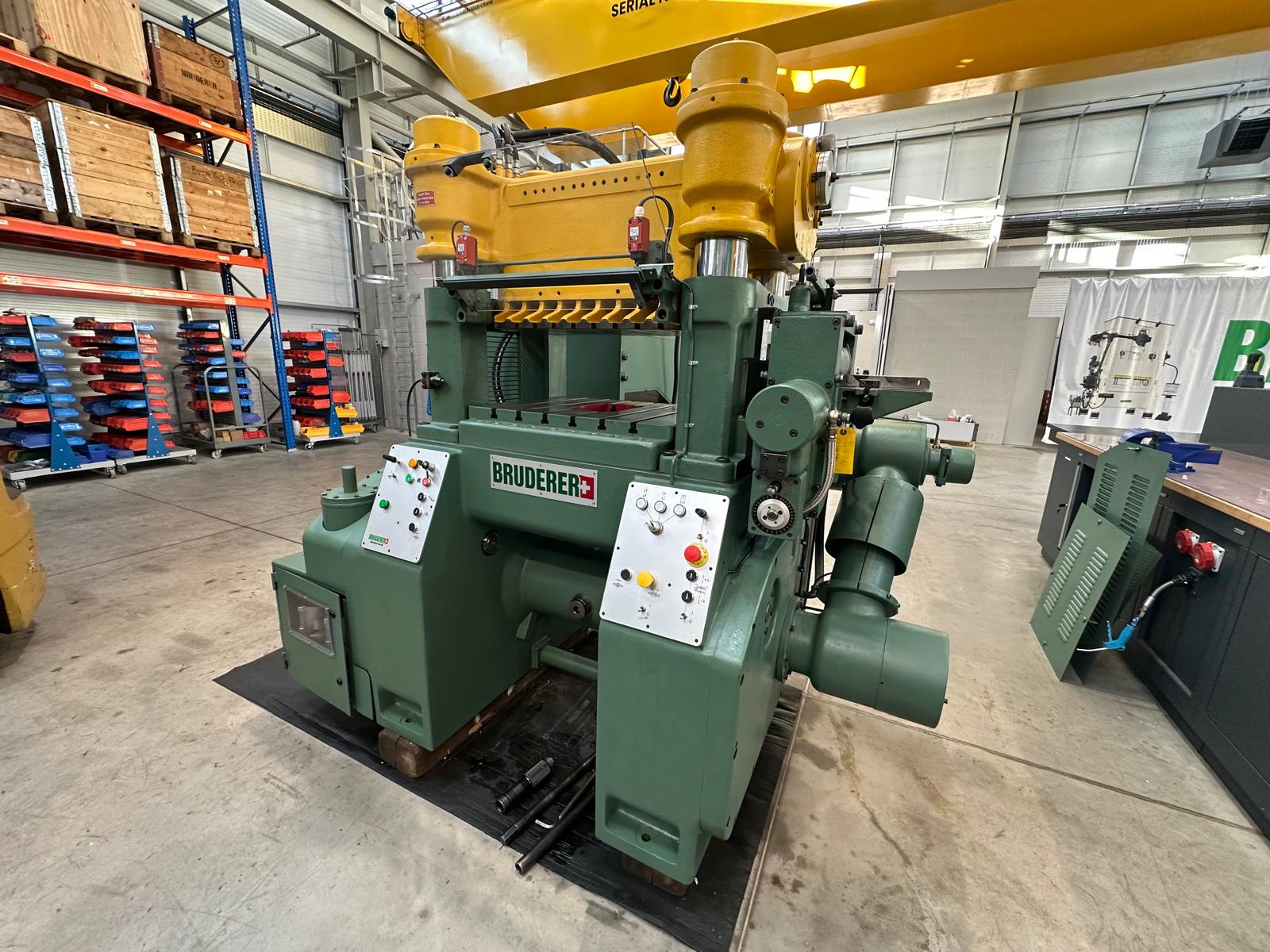

Bruderer BSTA 60HL press
One used Bruderer BSTA 60HL high speed punch press,
60 metric tons capacity, underdrive. Swiss origin.
Adjustable stroke 20 to 76 mm.
Speed range 100 to 750 strokes per minute max.
Bolster (tool clamping) area 920 mm x 620 mm.

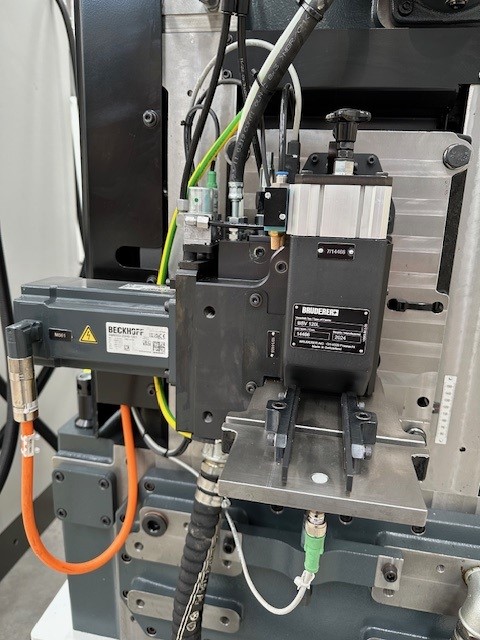

Double Roll feeds BBV 200-120, feeding direction left to right.
Max width of strip 203 mm.
Max strip thickness 4mm
Pitch 0-120mm
Approx. machine weight 8100kg
415v / 50Hz
