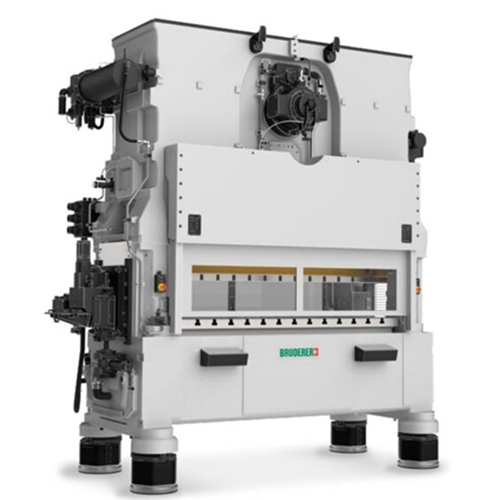

BSTA 510
- High performance stamping press with perfected mass balancing system and adjustable stroke
- Press force 510 kN
- Speeds ranging:
- BSTA 510-95: 100 – 1120 spm
- BSTA 510-110: 100 – 1120 spm
- BSTA 510-125: 100 – 1050 spm
- BSTA 510-150: 100 – 1050 spm
- Modular design in 4 versions
- Bolster plate dimensions:
- BSTA 510-95: 940 x 650 mm
- BSTA 510-110: 1080 x 650 mm
- BSTA 510-125: 1240 x 650 mm
- BSTA 510-150: 1490 x 650 mm
- Control based on IPC, high-quality TFT display with long service life and even illumination for good readability even under difficult lighting
- Integrated safety control
- Signal transmission to the stamping press via EtherCAT bus system
- Precision mechanics, versatile – can be used for a number of different applications, optimum cost-benefit ratio.
- Description
- Reviews (0)
Description
The BSTA 510 is a high-performance stamping press with adjustable stroke and full dynamic mass balancing, designed for flexible series production and precision stamping applications. With a nominal press force of 510 kN, variable stroke lengths and tool loading areas of up to 1,500 mm, it covers a wide range of applications. Depending on the component, the press achieves speeds of up to 1,120 spm. The adjustable stroke allows optimal adaptation to different applications, while press force monitoring and advanced drive technology ensure high precision, process reliability and energy efficiency.
