Servo Feeding Equipment

  • ,

    Advantage Push / Pull Servo Feeders

    Brochure: Pages 18 – 19 – 22

    Description:
    Our Advantage Push Pull Servo Feed with extra thickness capacity.
    Both Servo Feeds are synchronized by a single control with proprietary new software. Pushing the material into position and simultaneously pulling the strip or skeleton away from the tool provides better control and eliminates buckling.
    The Push-Pull can be manufactured using any model of P/A Feed – from the Micro to the Maximus, even Wire Feeds and Profiled Parts Feeds.
    This system can be used for non-coil strip feeding and can increase piece part production by as much as 400% vs. many strip feed applications.

  • ,

    Advantage Servo Feed with Pull Through Straightener

    Brochure: Pages 18 & 19

    Description:
    For those facilities where space is at a premium, the Advantage Servo Feed with a Pull-Thru, 5 Roll Straightener is the solution for you. The unit is mounted directly onto the press which frees up valuable floor space. Jog-To-Length, Job Storage, Inch/Metric, Multi-Language selectability are just a few of the standard electronic features the Advantage control provides.
    Note: Speed will be reduced approximately 25% from standard model rates when using a Pull Thru Straightener.

    FULL PRODUCT DESCRIPTION
    MODEL ADVANTAGE
    All of our mechanical assemblies are made from heavy cast frames, stabilized and then machined. The rugged design of our servo roll feeds eliminates maintenance. And P/A Industries includes user-friendly features at no extra charge like catenary, quick-release handles to adjust roller stock guides, exit support and stock buckle bridge, transition mounting brackets, positive pilot release roller cam and roll release lever for material insertion.
    MECHANICAL FEATURES
    • Rugged Steel Frame
    • Unique Design Maintains Roll Parallelism with Off Center Loading
    • Precision Gear Driven Upper Roll with Anti-Backlash
    • Roll Release Lever for Strip Insertion with Safety Lock
    • Stock Thickness Adjustment Lever
    • Large Diameter, Hard Chrome Feed Rolls are Texturized for Increased Grip
    • Feed Mounting Bracket For 2.4” (61 mm) of Die Height Adjustment
    • Pilot Release Roller Cam
    • Exit Support Bridge to Prevent Stock Buckling
    • Feed Rolls Mounted in Permanently Sealed, Anti-Friction Ball Bearings
    • Precision Planetary Gearbox 5:1 Ratio
    • Precision Planetary Gearbox 8:1 Ratio for Models SRF28 – 36
    • “X” Model offers a standard 8:1 Gearbox and extra thickness capacity
    ELECTRONIC FEATURES
    • ISO Certified Electrical Components Wired to JIC, NEC, & CE Standards
    • Backlit, LCD Touchscreen Display
    • Built-In I/O Diagnostics Assists in Troubleshooting
    • Batch Counter
    • Password Protected Job Storage
    • On-The-Fly, Micro Adjust Feed Length
    • Inch/Metric, Multi-Language Selectability
    • Single Stroke or Continuous Press Mode Capability
    • Jog Pendant
    • Jog-To-Length Capability
    • High Performance Digital Servo Drive And Motor
    • NEMA 4/12/13 Enclosure
    • Free Standing and Portable Console Stand
    • Mushroom Emergency Stop with Auxiliary Contacts for Multi-Unit Stop
    • Lockable Power Disconnect Switch

  • ,

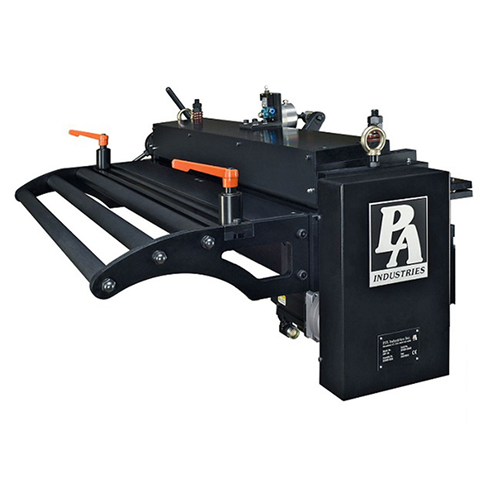

    Advantage Servo Feeder

    Brochure: Pages 10 & 11

    Description:
    • Multiple Job Storage – Storage for up to 200 jobs is standard.
    • Micro Adjust – New parameters allow for micro adjustment of the feed distance as the feed is running.
    • Back Length – Used in Cut-To-Length or Cut-Off applications, this feature backs the material away from the blade allowing the blade to be raised without lifting the fresh cut edge of the material – particularly useful for thin or delicate material.

    FULL PRODUCT DESCRIPTION
    MODEL ADVANTAGE
    All of our mechanical assemblies are made from heavy cast frames, stabilized and then machined. The rugged design of our servo roll feeds eliminates maintenance. And P/A Industries includes user-friendly features at no extra charge like catenary, quick-release handles to adjust roller stock guides, exit support and stock buckle bridge, transition mounting brackets, positive pilot release roller cam and roll release lever for material insertion.
    MECHANICAL FEATURES
    • Rugged Steel Frame
    • Unique Design Maintains Roll Parallelism with Off Center Loading
    • Precision Gear Driven Upper Roll with Anti-Backlash
    • Roll Release Lever for Strip Insertion with Safety Lock
    • Stock Thickness Adjustment Lever
    • Large Diameter, Hard Chrome Feed Rolls are Texturized for Increased Grip
    • Feed Mounting Bracket For 2.4” (61 mm) of Die Height Adjustment
    • Pilot Release Roller Cam
    • Exit Support Bridge to Prevent Stock Buckling
    • Feed Rolls Mounted in Permanently Sealed, Anti-Friction Ball Bearings
    • Precision Planetary Gearbox 5:1 Ratio
    • Precision Planetary Gearbox 8:1 Ratio for Models SRF28 – 36
    • “X” Model offers a standard 8:1 Gearbox and extra thickness capacity
    ELECTRONIC FEATURES
    • ISO Certified Electrical Components Wired to JIC, NEC, & CE Standards
    • Backlit, LCD Touchscreen Display
    • Built-In I/O Diagnostics Assists in Troubleshooting
    • Batch Counter
    • Password Protected Job Storage
    • On-The-Fly, Micro Adjust Feed Length
    • Inch/Metric, Multi-Language Selectability
    • Single Stroke or Continuous Press Mode Capability
    • Jog Pendant
    • Jog-To-Length Capability
    • High Performance Digital Servo Drive And Motor
    • NEMA 4/12/13 Enclosure
    • Free Standing and Portable Console Stand
    • Mushroom Emergency Stop with Auxiliary Contacts for Multi-Unit Stop
    • Lockable Power Disconnect Switch

  • ,

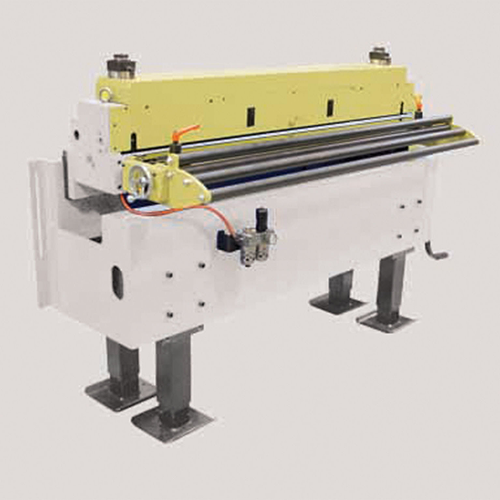

    Dynamax Large Servo Feeder

    Brochure: Pages 12 & 13

    Description:
    • Rugged Steel Frame
    • Unique Design Keeps Roll Parallelism w/ Off Center Loading
    • Precision Gear Driven Upper Roll w/ Anti-Backlash
    • Pneumatic Pilot Release of Upper Rolls for Strip Insertion
    • Batch Counter
    • On-The-Fly, Micro Adjust Feed Length
    FULL PRODUCT DESCRIPTION
    MODEL DYNAMAX
    MECHANICAL FEATURES
    •Rugged Steel Frame
    •Unique Design Maintains Roll Parallelism with Off
    Center Loading
    •Precision Gear Driven Upper Roll with Anti-Backlash
    •Pneumatic Cylinders to provide Roll Pressure
    •Pneumatic Pilot Release of Upper Roll for Strip Insertion and Piloting
    •Smooth Finish Hard Chrome Feed Rolls
    •Feed Mounting Bracket For 4.0” (102 mm) of Die
    Height Adjustment
    •Exit Support Bridge to Prevent Stock Buckling
    •Feed Rolls Mounted in Permanently Sealed, Anti-Friction Ball Bearings
    •Precision Planetary Gearbox 7:1 Ratio
    ELECTRONIC FEATURES
    •ISO Certified Electrical Components Wired to JIC, NEC & CE Standards
    •Backlit, LCD Touchscreen Display
    •Built-In I/O Diagnostics Assists in Troubleshooting
    •Batch Counter
    •Password Protected Job Storage
    •On-The-Fly, Micro Adjust Feed Length
    •Inch/Metric, Multi-Language Selectability
    •Single Stroke or Continuous Press Mode Capability
    •Jog Pendant
    •Jog-To-Length Capability
    •High Performance Digital Servo Drive And Motor
    •NEMA 4/12/13 Enclosure
    •Free Standing and Portable Console Stand
    •Mushroom Emergency Stop with Auxiliary Contacts for Multi-Unit Stop
    •Lockable Power Disconnect Switch

  • ,

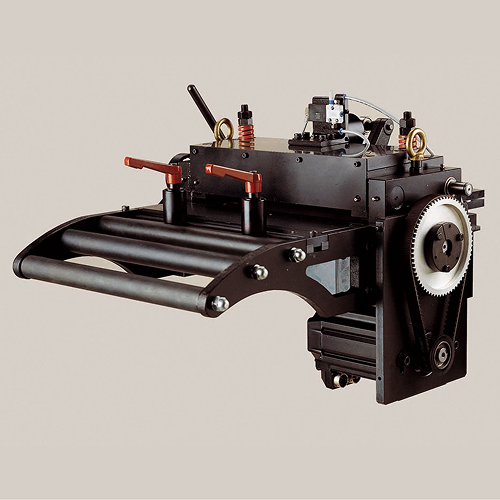

    Edge Servo Feeder

    Brochure: Pages 8 & 9

    Description:

    HIGH PERFORMANCE SERVO FEED AT AN ECONOMICAL PRICE
    The K350 Edge series was developed in response to the contract stampers need for an electronic servo feed at a reasonable cost. Set up is quick and simple. Just enter your feed progression and speed. Constant Up-Time is achieved through the use of reliable, brushless AC Servo drives. Feed length accuracy is assured by the closed loop, encoder feedback circuit.
    In addition to the cast iron roll feed housing and oversized, chrome-plated rolls, The Edge has incoming catenary rolls, adjustable mounting bracket for pass line height adjustment, inch/metric programmability, “Feed Before Press” or “Press Before Feed” priority mode selection, single stroke or continuous press mode capability, jog to length capability, and many more…
    FULL PRODUCT DESCRIPTION
    MODEL EDGE
    In addition to the cast iron roll feed housing and oversized, chrome-plated rolls, The Model Edge has incoming catenary rolls, adjustable mounting bracket for pass line height adjustment, inch/metric programmability, “Feed Before Press” or “Press Before Feed” priority mode selection, single stroke or continuous press mode capability, jog to length capability, and many more…
    MECHANICAL FEATURES
    • Rugged Steel Frame
    • Unique Design Maintains Roll Parallelism with Off
    • Center Loading
    • Precision Gear Driven Upper Roll with Anti-Backlash
    • Roll Release Lever for Strip Insertion with Safety Lock
    • Stock Thickness Adjustment Lever
    • Large Diameter, Hard Chrome Feed Rolls are Texturized for Increased Grip
    • Feed Mounting Bracket For 2.4” (61 mm) of Die Height Adjustment
    • Pilot Release Roller Cam
    • Exit Support Bridge to Prevent Stock Buckling
    • Feed Rolls Mounted in Permanently Sealed,
    • Anti-Friction Ball Bearings

    ELECTRONIC FEATURES
    • ISO Certified Electrical Components Wired to JIC, NEC, & CE Standards
    • Backlit, LCD Touchscreen Display
    • Built-In I/O Diagnostics Assists in Troubleshooting
    • Batch Counter
    • Password Protected Job Storage
    • On-The-Fly, Micro Adjust Feed Length
    • Inch/Metric, Multi-Language Selectability
    • Single Stroke or Continuous Press Mode Capability
    • Jog Pendant
    • Jog-To-Length Capability
    • High Performance Digital Servo Drive And Motor
    • NEMA 4/12/13 Enclosure
    • Free Standing and Portable Console Stand
    • Mushroom Emergency Stop with Auxiliary Contacts for Multi-Unit Stop
    • Lockable Power Disconnect Switch

  • ,

    Magnum Servo Feed with Pull Through Straightener

    Description:
    The Cabinet Mounted “C” Series Magnum Feed w/ Pull-Thru Straightener saves floor space and is able to handle material up to 48″ wide with its 3-inch straightening rolls. Adjust your pass-line manually or with the Optional Motorization package. Pinch Rolls with Pneumatic Release for Manual Threading are standard.
    The “C” Series offers several options – 7 Rolls, Motorized Pinch Rolls, and Motorized Height Adjustable Cabinet.
    Note: Speed will be reduced approximately 25% from standard model rates when using a Pull Thru Straightener.

  • ,

    Magnum Servo Feeder

    Brochure: Pages 14 – 15

    Description:
    The Model Magnum is Robust in Size and Construction. The Roll Feed frame is machined from a stabilized casting for strength, rigidity, and precision. Feed rolls are fabricated from heavy wall alloy steel tubing. A press mounting bracket with plus or minus 2″ vertical adjustment is included as standard equipment.

    FULL PRODUCT DESCRIPTION
    SERVO ROLL FEED MODEL MAGNUM
    The combination of servo motor and gear reducer gives the Magnum optimum pulling power, speed, and accuracy. The electrical control features include Jog-To-Feed length, press or feed priority selection, press/feeder synchronous checking, six digit batch counter, and single stroke capability. Other controller options such as strip measurement wheel, sequential feeding, and tool gagging, are available.
    MECHANICAL FEATURES
    • 1-1/2” (38 mm) Thick, Rugged Cast Iron Frame
    • Unique Design Maintains Roll Parallelism with Off Center Loading
    • Fail Safe Stock Clamping Assures Material Position in Die When Power is Off
    • Two 3.15” (80 mm) Dia. Pneumatic Cylinder to Provide Roll Pressure; 3.94” (100 mm) on “X” Models
    • Urethane Covered Catenary Rolls for Additional Material Protection
    • Large Diameter, Hard Chrome Feed Rolls are Texturized for Positive Grip
    • Pneumatic Pilot Release
    • Precision, Low Backlash Worm Gearbox
    • Digital Readout and Hand Wheel for Accurate Material Thickness Setting
    • Precision Cluster Gearing of Upper Roll
    • Exit Support Bridge to Prevent Stock Buckling
    • Feed Mounting Bracket for 3.9” (100 mm) of Die Height Adjustment
    • “X” Model offers a standard 30:1 Gearbox and larger cylinders for extra gripping force and extra thickness capacity

    ELECTRONIC FEATURES
    • ISO Certified Electrical Components Wired to JIC, NEC, & CE Standards
    • Backlit, LCD Touchscreen Display
    • Built-In I/O Diagnostics Assists in Troubleshooting
    • Batch Counter
    • Password Protected Job Storage
    • On-The-Fly, Micro Adjust Feed Length
    • Inch/Metric, Multi-Language Selectability
    • Single Stroke or Continuous Press Mode Capability
    • Jog Pendant
    • Jog-To-Length Capability
    • High Performance Digital Servo Drive And Motor
    • NEMA 4/12/13 Enclosure
    • Free Standing and Portable Console Stand
    • Mushroom Emergency Stop with Auxiliary Contacts for Multi-Unit Stop
    • Lockable Power Disconnect Switch

  • ,

    Maximus Servo Feed with Pull Through Straightener

    Brochure: Pages 16 – 17

    Description:
    The Maximus Servo Feed with Pull-Thru Straightener is Cabinet mounted with optional motorized pass line adjustment. This unit with it’s 6 inch Feed Roll and 4″ Straightening Rolls can handle material up to 48″ wide. Motorized Pinch Rolls with Pneumatic Release are Standard. When space is at a premium, and you need to feed and straighten tough material, The K650 Maximus is your solution.
    The “D” Series Straightener has a few options available: 7 Straightening Rolls and Motorized Height Adjustment on the Cabinet to ease Pass Line changes.

  • ,

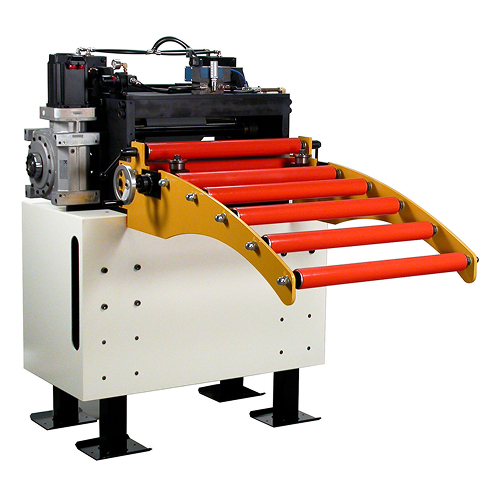

    Maximus Servo Feeder

    Brochure: Pages 14 – 15

    Description:

    The robust frame is designed for feeding material up to half an inch thick. A heavy-duty servomotor and gearbox drive the massive six-inch diameter rolls providing optimum pulling power, speed and accuracy.
    Extended length, heavy duty catenary entrance rolls and self-centering stock edge guides, as well as the Feed Mounting Cabinet with 12″ of Height Adjustment are just a few of the standard mechanical features. The High Performance Digital Servo Drive provides the latest Servo Feed technology.

    FULL PRODUCT DESCRIPTION
    SERVO ROLL FEED MODEL MAXIMUS
    Extended length, heavy duty catenary entrance rolls and self-centering stock edge guides, as well as the Feed Mounting Cabinet with 12″ of Height Adjustment are just a few of the standard mechanical features. The High Performance Digital Servo Drive provides the latest Servo Feed technology.
    MECHANICAL FEATURES
    • 1.5” (38 mm) Thick, Machined Frame
    • Two 5” (127 mm) Diameter Pneumatic Cylinders Provide Roll Pressure
    • Self-Centering Edge Guides for Strip Insertion
    • Urethane Covered Catenary Rolls for Additional Material Protection
    • 6 Inch (152 mm) Diameter, Hard Chrome Feed Rolls are Texturized for Positive Grip
    • Precision, Low Backlash Worm Gearbox
    • Pneumatic Pilot Release
    • Feed Mounting Cabinet with 12” (305 mm) of Height Adjustment
    ELECTRONIC FEATURES
    • ISO Certified Electrical Components Wired to JIC, NEC, & CE Standards
    • Backlit, LCD Touchscreen Display
    • Built-In I/O Diagnostics Assists in Troubleshooting
    • Batch Counter
    • Password Protected Job Storage
    • On-The-Fly, Micro Adjust Feed Length
    • Inch/Metric, Multi-Language Selectability
    • Single Stroke or Continuous Press Mode Capability
    • Jog Pendant
    • Jog-To-Length Capability
    • High Performance Digital Servo Drive And Motor
    • NEMA 4/12/13 Enclosure
    • Free Standing and Portable Console Stand
    • Mushroom Emergency Stop with Auxiliary Contacts for Multi-Unit Stop
    • Lockable Power Disconnect Switch

  • ,

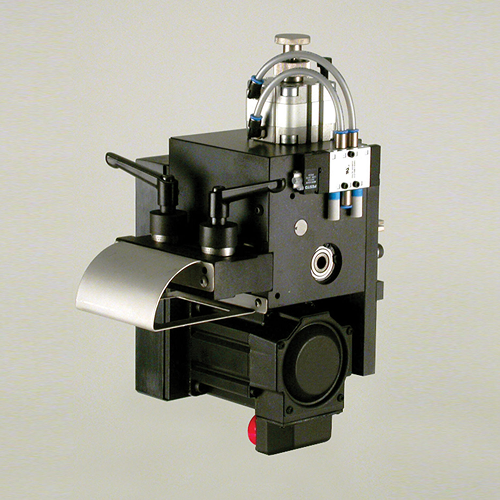

    Micro Servo Feeder

    Brochure: Pages 4 & 5

    Description:
    The Micro Feed is the smallest, least expensive servo feed available anywhere in the world today. The feed is so compact, it can fit in the palm of a hand making installation in constricted areas possible.
    The most affordable, compact, high technology electronic feeder is now ready for your operation.
    FULL PRODUCT DESCRIPTION
    MICRO SERVO FEED
    Roll Diameter Size is Critical – All Servo Roll Feed models have extra-large rolls to withstand the toughest abuse and harshest pressroom environment. Compare our rated specifications and generous roll diameter against any other feed builder. Size does make a difference.
    All of our mechanical assemblies are made from heavy cast frames, stabilized and then machined. The rugged design of our servo roll feeds eliminates maintenance. And includes user-friendly features at no extra charge like catenary, quick release handles to adjust roller stock guides, exit support and stock buckle bridge, transition mounting brackets, positive pilot release roller cam and roll release lever for material insertion.
    MECHANICAL FEATURES
    • Hard Chrome Feed Rolls with Matte Finish to Provide
    • Increased Grip
    • Adjustable Roll Lift
    • Quick Change Rolls Can be Machined to Accept Wire or Profiled Material
    • Feed Rolls are Mounted in Permanently Sealed
    • Anti-Friction Ball Bearings
    • Two Quick Release Adjustable Edge Stock Guides
    • Entrance Material Support
    • Pneumatic Pilot Release

    ELECTRONIC FEATURES
    • ISO Certified Electrical Components wired to JIC, NEC and CE Standards
    • Backlit, LCD Touchscreen Display
    • Inch/Metric, Multi-Language Selectability
    • Mushroom Emergency Stop with Auxiliary Contacts for Multi-Unit Stop
    • NEMA 4/12/13 Enclosure
    • Feed Complete Programmable Output Relay
    • Batch Counter
    • Jog-To-Length
    • Built-In I/O Diagnostics
    • Check Feed Synchronization Confirmation
    • High Performance Digital Servo Drive, PLC and Motor
    • Optional Handheld Remote Jog Pendant

  • ,

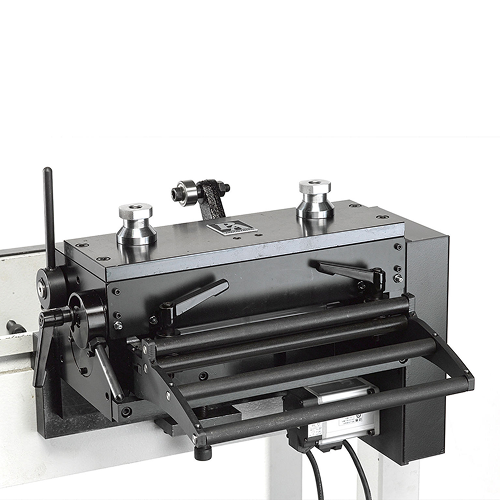

    Mini Servo Feeder

    Time to replace your Air Feed with a truly affordable Servo Roll Feed.
    The reduction in maintenance and downtime alone easily justifies the switch to the Mini Feed. These Mini Servo Feeds have all of the benefits and features of our larger models. Rugged Steel Frame Construction, Permanently Mounted Feed Rolls, High Performance AC Brushless Servo Motor, Matte Finished Hard Chrome Feed Rolls, Feed mounting bracket for up to 2.5 inch (64mm) of die height adjustment and many more…
    FULL PRODUCT DESCRIPTION
    SERVO FEED MODEL MINI
    Roll Diameter Size is Critical – All our Servo Roll Feeders have extra-large rolls to withstand the toughest abuse and harshest pressroom environment. Compare our rated specifications and generous roll diameter against any other feed builder. Size does make a difference.
    All of our mechanical assemblies are made from heavy cast frames, stabilized and then machined. The rugged design of our servo roll feeds eliminates maintenance. And includes user-friendly features at no extra charge like catenary, quick-release handles to adjust roller stock guides, exit support and stock buckle bridge, transition mounting brackets, positive pilot release roller cam and roll release lever for material insertion.

    MECHANICAL FEATURES
    • Rugged Steel Frame
    • Unique Design Maintains Roll Parallelism with Off Center Loading
    • Pilot Release Roller Cam
    • Hand Knobs With Vernier Scale Adjust Roll Pressure on Material
    • Hard Chrome Feed Rolls with Textured Finish To Provide Increased Grip
    • Feed Mounting Bracket for up to 2.4” (61 mm) of Pass Line Height Adjustment
    • Precision Gear Driven Upper Roll with Anti-Backlash
    • Exit Support Bridge to Prevent Stock Buckling
    • Stock Thickness Adjustment Lever
    • Two Quick Release Adjustable Edge Stock Guides
    • Roll Release Lever for Strip Insertion with Safety Lock
    • Feed Rolls Mounted in Permanently Sealed
    • Anti-Friction Ball Bearings
    ELECTRONIC FEATURES
    • ISO Certified Electrical Components wired to JIC, NEC and CE Standards
    • Backlit, LCD Touchscreen Display
    • Inch/Metric, Multi-Language Selectability
    • Mushroom Emergency Stop with Auxiliary Contacts for Multi-Unit Stop
    • NEMA 4/12/13 Enclosure
    • Free Standing and Portable Console Stand
    • Feed Complete Programmable Output Relay (Can Be Used for Cut-To-Length Applications)
    • Batch Counter
    • Jog-To-Length
    • Built-In I/O Diagnostics
    • Feed Synchronization Confirmation
    • High Performance Digital Servo Drive, PLC and Motor
    • Hand Held Remote Jog Pendant

  • ,

    Stagger Servo Feeder

    Description:
    Our Servo Stagger Feed can save up to 13% material scrap.

    Just enter the blank size, material width, and number of rows. The P/A Servo Stagger Feed, also known as a Zig-Zag in the industry, will conform the most optimal pattern for the strip. The P/A Servo Stagger Feed has the ability to run at faster speeds by moving forward and backward. This enables the feed to shift one blank at a time, as opposed to two at a time, creating a shorter move and therefore faster speeds.
