Bruderer High Performance Stamping Press BSTA 1600

Check out our Latest News!

Bruderer High Performance Stamping Press BSTA 1600

High Speed BSTA 1600 High performance stamping press with perfected mass balancing system and adjustable stroke.

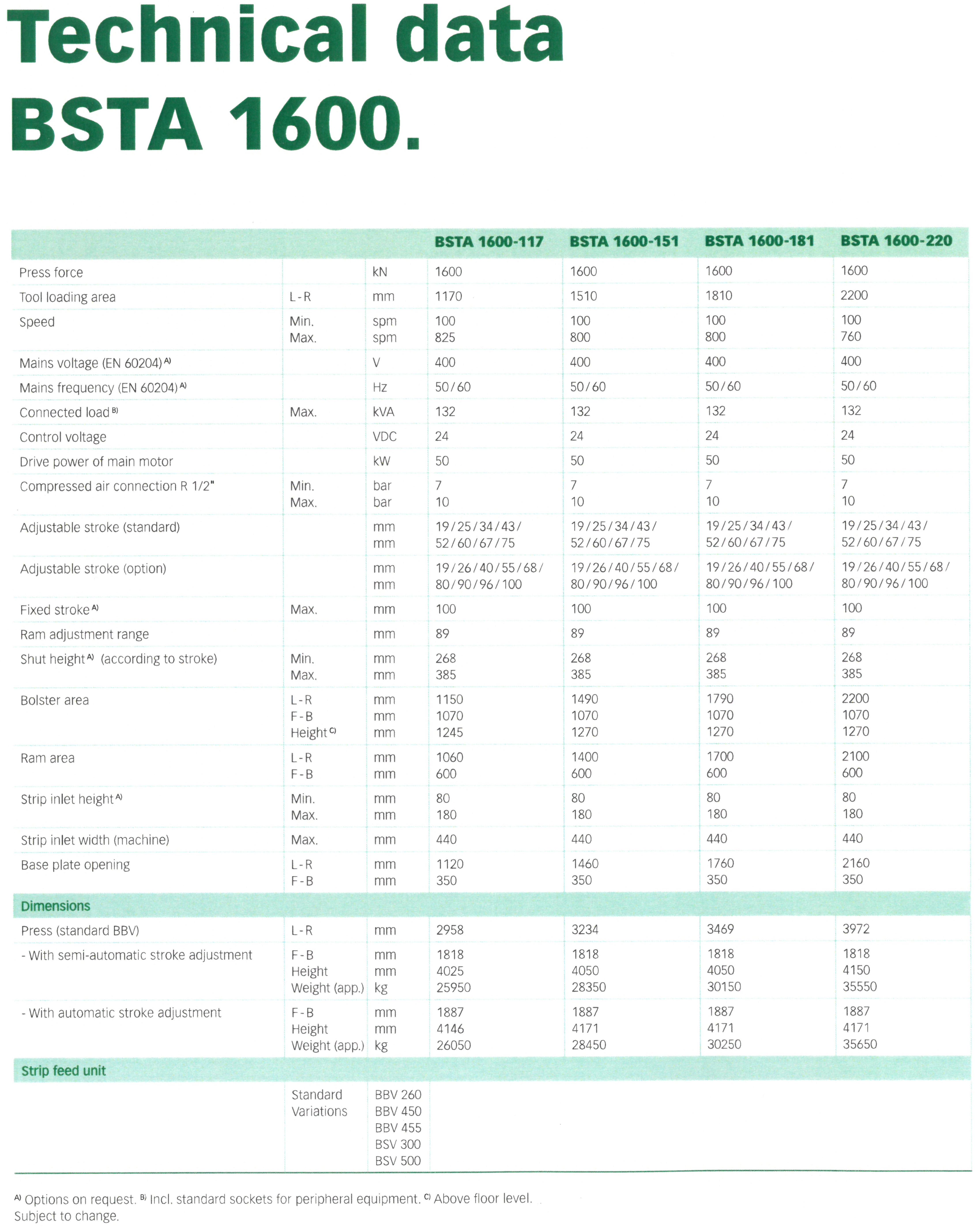

Datasheet Brochure

Send Enquiry

Description

Bruderer High Performance Stamping Press BSTA 1600

High Speed BSTA 1600 High performance stamping press with perfected mass balancing system and adjustable stroke. Press force 1600 kN. Speeds ranging from 100 to 825 spm. Modular design in 4 versions, bolster plate dimensions of the Bruderer High Performance Stamping Press BSTA 1600:

BSTA 1600-117         1150 x 1070 mm

BSTA 1600-151        1490 x 1070 mm

BSTA 1600-181        1790 x 1070 mm

BSTA 1600-220      2200 x 1070mm

Control based on IPC, high-quality TFT display with long service life and even illumination for good readability even under difficult lighting

Integrated safety control

Signal transmission to the stamping press via EtherCAT bus system

Precision mechanics, versatile can be used for a number of different applications, optimum cost-benefit ratio.
