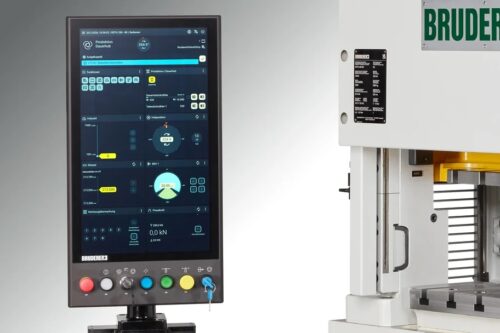

B3 Control

With the B3 control system, BRUDERER is setting a new benchmark in the automation of high-performance stamping processes.

The B3 control system is designed to manage the high-performance stamping press and the stamping process as one integrated system, consistently optimising transparency, efficiency and machine availability.

• Maximum process and machine transparency
• Outstanding energy efficiency
• Maximum availability and future readiness

With the development and introduction of the B3 control system, BRUDERER is ushering in a new generation of machine control. The system has already been implemented in the new BSTL series of machines and will replace the existing B2 control system in all newly ordered BSTA models.

The B3 control system combines the proven BRUDERER quality and precision, trusted for decades, with a new intuitive operating philosophy – developed from more than 25 years of experience and shaped through close collaboration with customers across a wide range of industries.

At the same time, BRUDERER ensures the long-term availability of spare parts and software updates, making an important contribution to sustainability and long-term investment protection.

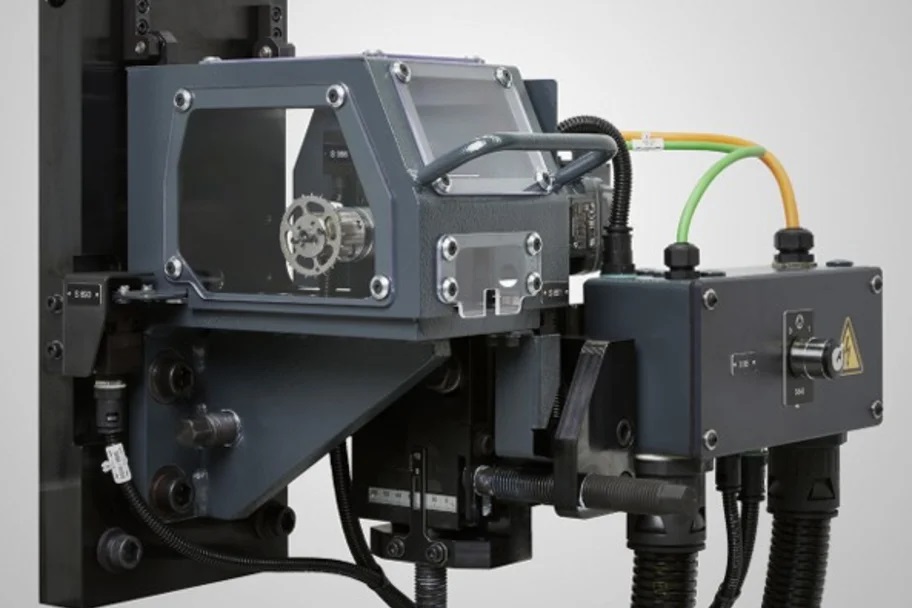

BSP lamination stacking control

The BRUDERER BSP lamination stacking control has been specifically designed to meet the requirements of modern stamping operations manufacturing rotor and stator laminations.

Customers benefit from reduced setup times, increased productivity and consistently high product quality.

The patented strip thickness measurement integrated into the BRUDERER BSV servo feed ensures maximum process stability, while automatic motor parameterisation enables the flexible integration of different indexing station drives and optimises overall system performance.

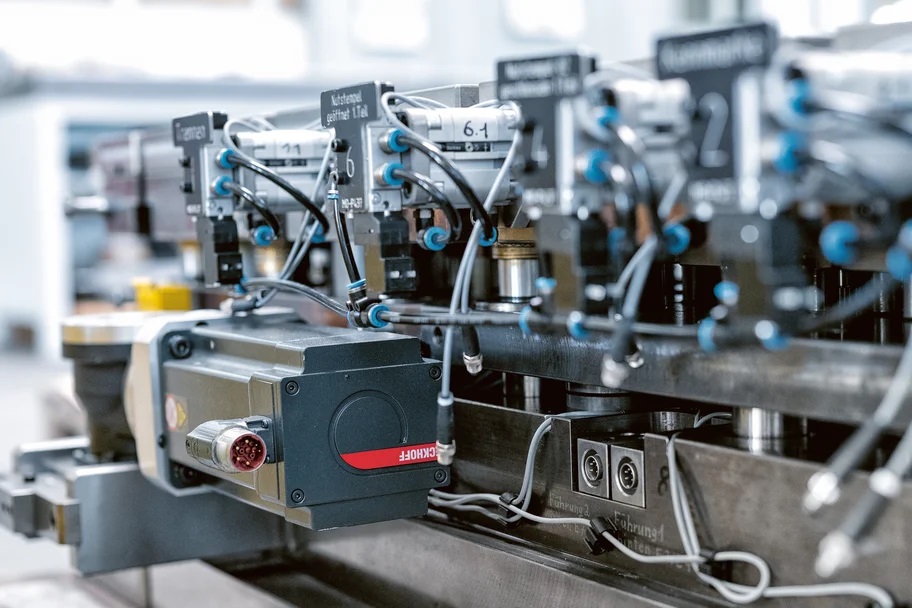

BSA servo axles

More possibilities. More flexibility. More space. Greater process reliability. We will be pleased to advise you on your customised solution with BRUDERER servo axis technology.

• Greater design freedom in tooling
• Extended flexibility in process design
• Full integration of all functions into the BRUDERER user interface
• Space-saving installation in the BRUDERER control cabinet
• A single point of contact for support and training

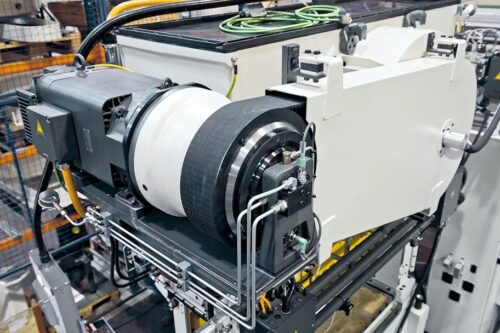

BPG planetary gearbox

With the planetary gear, the speed can be freely selected from one stroke per minute upwards. Even at minimum speed, you can still work at 100% power.

• High-performance stamping press and test press in one
• Handheld control for the stamping press
• Test operation at the lowest stroke rates while utilising the full press force
• Easy ram height adjustment using the handheld control
• Display of key process values on the handheld control (press force, distance to bottom dead centre)

• Test and run in tools under real production press forces
• Manual operation of the stamping press
• Precise inching control enables easy setup and optimised tool development
• Simplified testing of tools and material
• No discrepancies – development and production use the same machine
