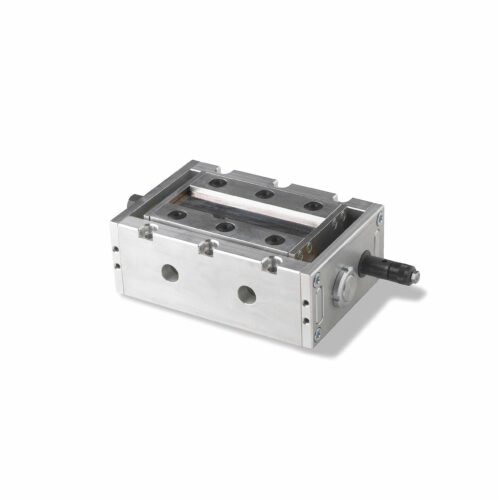

Transporter TP-10
The Transporter TP-10 – a unique problem solver
A pneumatically driven BELTLESS CONVEYOR that solves scrap & parts removal problems efficiently and inexpensively with a linear, rhythmic tray motion. No replacement costs of belts & rollers as with conventional conveyors. Just install the low-profile Transporter under your tool and problems with slugs, steel shavings, and scrap disappear. One transporter can drive multiple trays. The Transporter can also be used in assembly-type operations.
- Description
Description
Max Load Capacity: 10 kg
Max Tray Weight: 3 kg
Stroke Length: 23 mm
Feed Rate: 8-10 m/min
Air Pressure: 4-5,5 bar
Air Consumption: 11 l/min
Max Incline of Tray: 8°
Sound Level: 56 dB (A)
Shipping Weight: 2,8 kg
