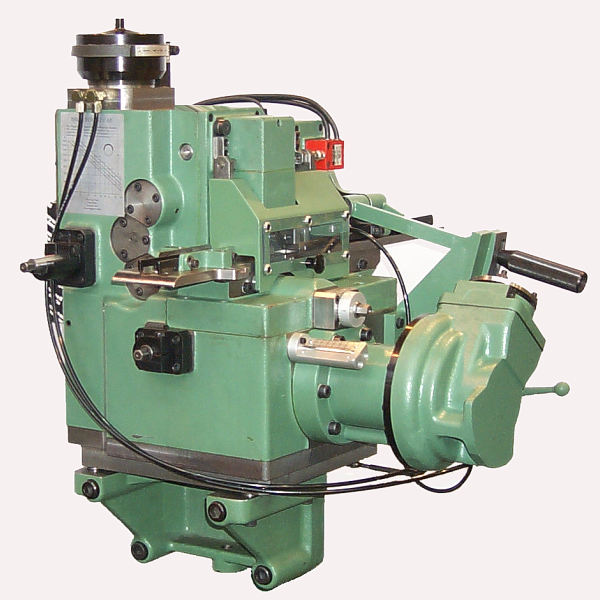

Bruderer Precision BZV61 Gripper Feed
The Bruderer Precision BZV 61 Gripper Feed unit was specially designed with sensitive and thin metal strips in minds. It protects the surface of the strip thanks to the large support surface of its clamps.
- Description
Description
Bruderer Precision BZV61 Gripper Feed

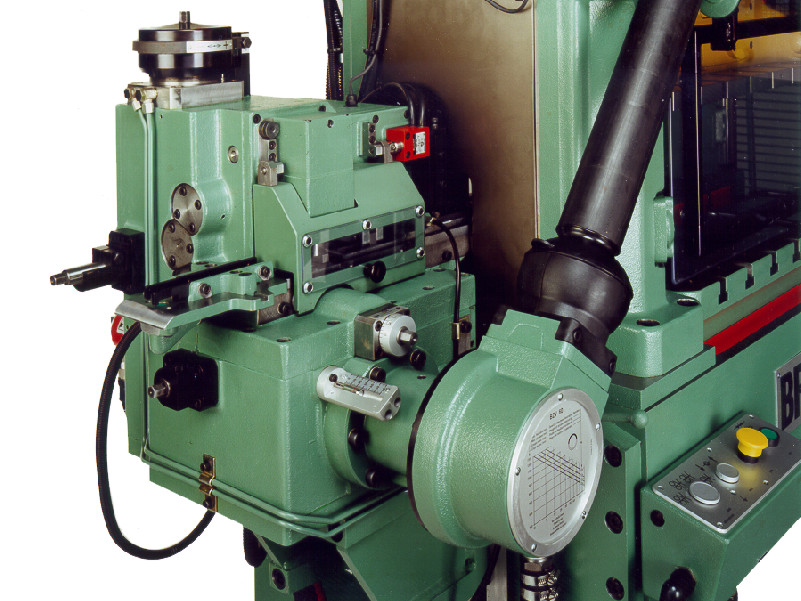

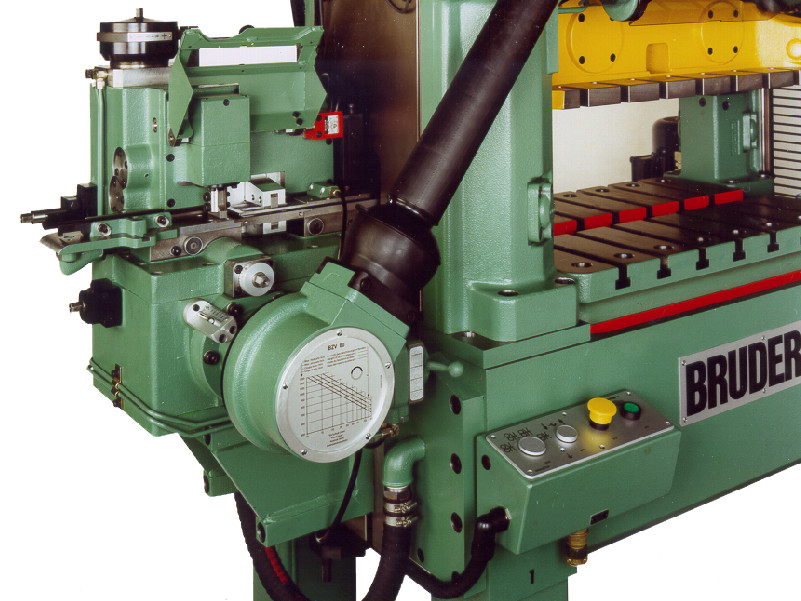

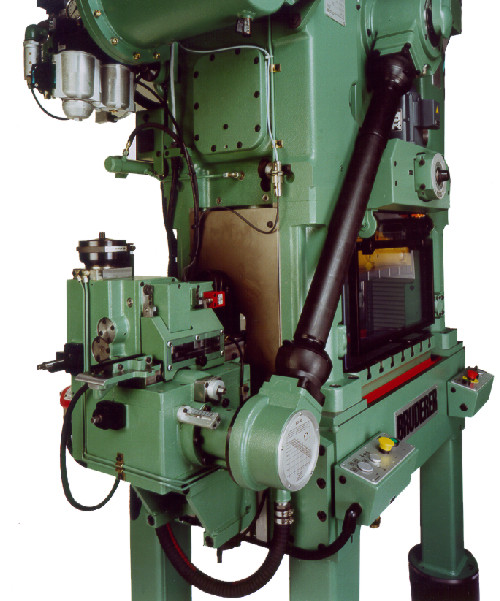

The BZV gripper feed is distinguished by outstanding performance and unmatched reliability. It is driven directly from the main shaft of the high-performance stamping press via a cardan shaft.

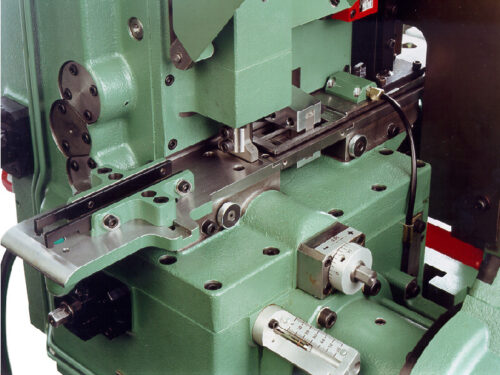

Thanks to its gripper clamping system, the feed provides the ideal solution for feeding thin, sensitive and finished strip materials. The linear gripper movement eliminates any rolling contact between feed rolls and the strip material. Easily interchangeable grippers allow optimum adaptation of the gripper contact surface to profiled and pre-punched strip materials. Lubrication and cooling are provided by the central lubrication system of the high-performance stamping press.
Technical information
performance stamping press.
Feed Angle 180 Deg.
Feed length 0-60 mm
Gripper width 45 mm
Strip inlet width 70 mm
Strip thickness 2.0 mm
Suitable for – BSTA 200, BSTA 280, BSTA 410, BSTA 510, BSTA 810
